The BKS-Z-3000 BKS-Z-3200 6.5-7 drive burks HP commercial grade gasoline engine high pressure cleaning machine

Product Details

burks BKS-Z-3000 BKS-Z-3200 Gasoline Engine Drive High Pressure Washer

High-pressure cold water commercial-grade washer, gasoline engine power 6.5/7 hp. Max. flow 12.6L/min, max. pressure 20.6MPa. Durable, powerful, multi-purpose, professional quality.

Features

Durable-grade gasoline engine, direct drive. Forged brass pump head, crankshaft pump. Solid heat-treated stainless steel plunger with ceramic coating surface. German Parker double U-type water seals. Adjustable pressure. Large side oil mirror for quick checking of the high-pressure pump oil level. Standard 3/8" quick connector with high-pressure liquid detergent suction system. The gasoline engine has low oil protection and recoil start. Equipped with a 5-piece quick-connect nozzle set including 0°, 15°, 25°, 40° and a brass detergent nozzle. 10m durable steel-wire braided high-pressure hose, professional trigger spray gun or 20" stainless steel lance. Foldable handle frame for easy moving and storage, with 10" pneumatic tires for better shock absorption and balance.

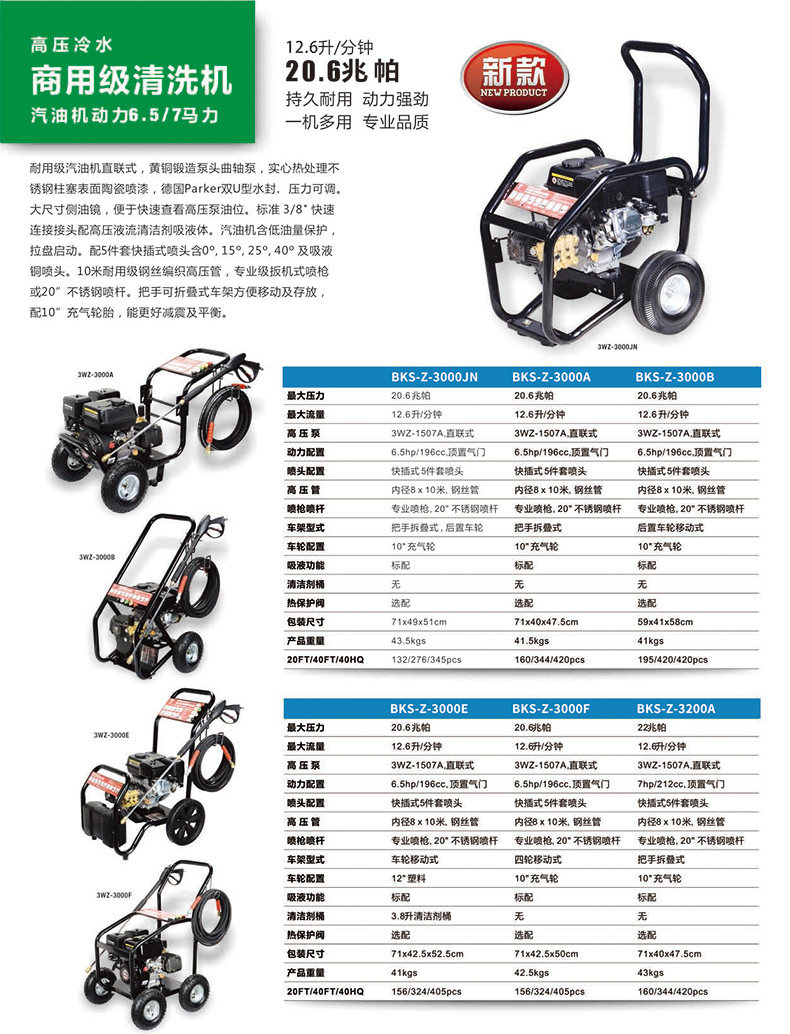

Models and Parameters

BKS-Z-3000JN

BKS-Z-3000A

BKS-Z-3000B

BKS-Z-3000E

BKS-Z-3000F

BKS-Z-3200A

Classification and Applications of Pressure Washers

Commercial / professional grade 3000psi-4000psi
Service life of more than 500 hours

Suitable for daily cleaning work, but the weekly use time should not exceed 20 hours. With a series of cleaning accessories, rich cleaning capability can be obtained. Widely used for high-intensity cleaning work such as: cleaning buildings, cement and stone floors, agricultural machinery, large terraces, garages, food processing equipment, factory buildings, swimming pools, etc.

Industrial grade
Service life of more than 1000 hours

Suitable for cleaning work of more than 20 hours per week. In order to obtain a longer service life and better durability, industrial-grade washers are equipped with speed reduction systems, such as gear reduction boxes and belt reduction systems. Used for paint removal, rust removal, concrete renovation, cleaning large areas of oil stains, sewer flushing, water tank and tank cleaning, etc. Different cleaning work requires different accessories.

Avoid Wrong Operation and Bad Use Habits That Increase Maintenance Costs

Wrong operation will increase the maintenance cost of the washer. The washer needs regular maintenance to ensure stable and efficient performance. High-pressure water will wear seals, O-rings, springs and other parts. Therefore, regular maintenance of seals, check valves and O-rings and regular oil changes will effectively extend the service life of the washer. However, it is usually wrong operation that causes extra repair costs.

1. Running the washer without water
Running without water inlet, the dry friction of the plunger and seals will cause the plunger and seals to wear out quickly.

2. Letting the washer stay in bypass mode for a long time
Bypass mode means that the spray gun is closed while the washer is running. At this time the water outlet passage is closed, and the water in the pump circulates back and forth in the pump head under the action of the plunger, so the water temperature will rise quickly. Therefore, do not let the washer run in bypass mode for a long time, because high-temperature water will soften and quickly wear the seals, O-rings and plastic valve covers. So please turn off the washer after finishing each stage of work or when leaving for a long time. In order to prevent damage caused by running in bypass mode for a long time, a temperature control valve / thermal relief valve can be installed. The principle of this device is that when the water temperature reaches the opening temperature, the protection valve opens and discharges the hot water, and at the same time automatically injects cold water to cool the system. However, even a washer equipped with a thermal relief valve cannot run in bypass mode for a long time.

3. Cavitation
Cavitation is caused by air entering the pump. The air entering the pump will damage the high-pressure pump, because air expands or contracts rapidly. The most obvious cavitation phenomena are pressure drop and a "hammering" sound. Cavitation is caused by insufficient water inlet or air entering. For example, the rated flow of the washer is 15L/min, but the water supply is only 11L/min, while the high-pressure pump still draws at 15L/min, so the insufficient part drawn in is air, which causes cavitation. Therefore, ensure that the flow of the water supply is greater than the rated flow of the washer, and ensure that the inlet pipe has no leakage.

4. Freezing
In winter, the water accumulated in the pump will freeze and damage the high-pressure pump. During winter maintenance, antifreeze can be added to the pump. In addition, when using in winter, the machine can be kept running for a few seconds after the water supply is stopped so that the accumulated water in the pump is discharged.

5. Running with no oil or low oil level
Both the high-pressure pump and the gasoline engine need lubricating oil to lubricate the transmission mechanism, such as the crankshaft, connecting rod, bearings and plunger. Lubricating oil not only lubricates but also cools the parts. Running with no oil or low oil level will cause complete damage to the pump. When there is no oil, little oil, poor oil quality, wrong oil, or water in the oil, the parts cannot be effectively lubricated, the temperature of the parts will rise quickly and lead to cracking and damage. Therefore, check the oil level frequently and change the oil regularly.
