  • The burks BAP Miniature Clean Water Submersible Pump

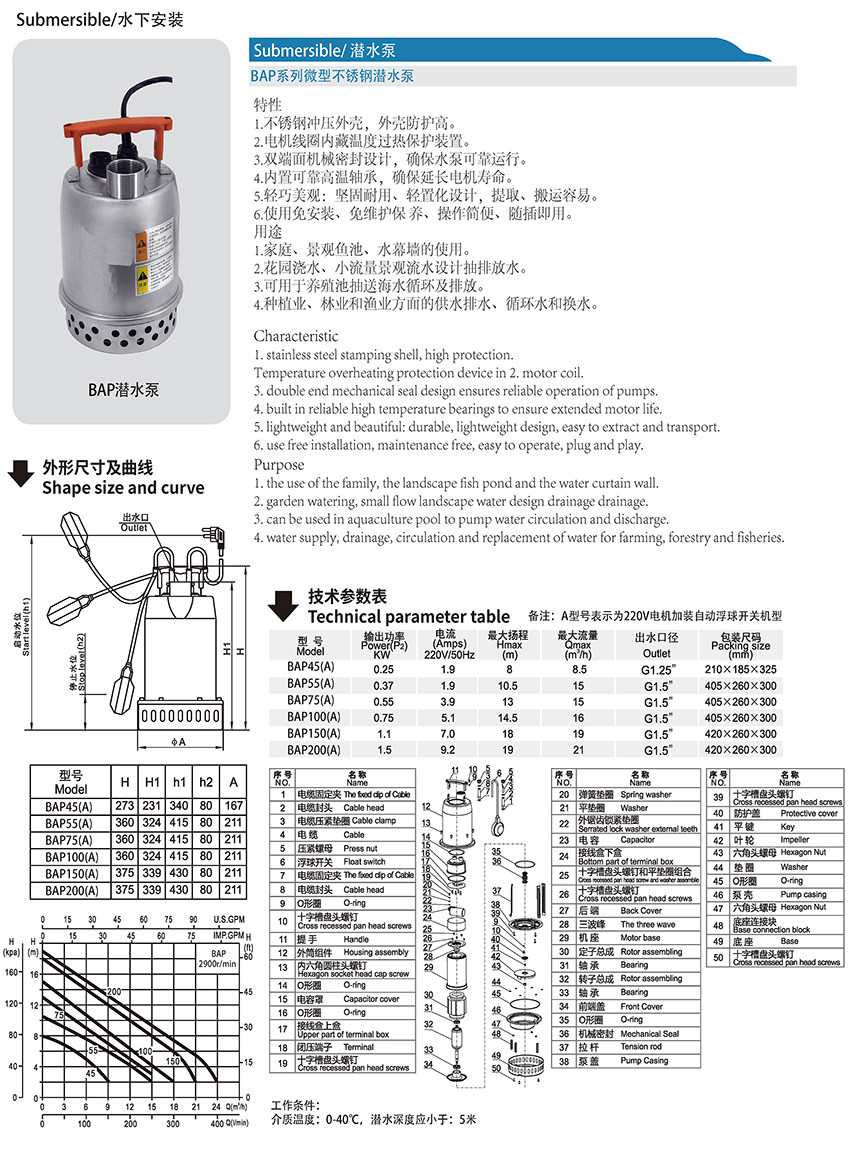

The burks BAP Miniature Clean Water Submersible Pump

The burks BAP Miniature Clean Water Submersible Pump

  • Product description: burks BAP miniature clean water submersible pump with stainless steel casing, motor overheat protection and double-end mechanical seal.
  • INQUIRY

Technical Parameter Table

Note: Model A indicates a 220V motor equipped with an automatic float switch.

BAP45(A)

Output power P2 0.25kW
Current (220V/50Hz) 1.9A
Max. head Hmax 8m
Max. flow Qmax 8.5m³/h
Outlet G1.25"
Packing size 210×185×325mm

BAP55(A)

Output power P2 0.37kW
Current (220V/50Hz) 1.9A
Max. head Hmax 10.5m
Max. flow Qmax 15m³/h
Outlet G1.5"
Packing size 405×260×300mm

BAP75(A)

Output power P2 0.55kW
Current (220V/50Hz) 3.9A
Max. head Hmax 13m
Max. flow Qmax 15m³/h
Outlet G1.5"
Packing size 405×260×300mm

BAP100(A)

Output power P2 0.75kW
Current (220V/50Hz) 5.1A
Max. head Hmax 14.5m
Max. flow Qmax 16m³/h
Outlet G1.5"
Packing size 405×260×300mm

BAP150(A)

Output power P2 1.1kW
Current (220V/50Hz) 7.0A
Max. head Hmax 18m
Max. flow Qmax 19m³/h
Outlet G1.5"
Packing size 420×260×300mm

BAP200(A)

Output power P2 1.5kW
Current (220V/50Hz) 9.2A
Max. head Hmax 19m
Max. flow Qmax 21m³/h
Outlet G1.5"
Packing size 420×260×300mm

Operating Conditions

Medium temperature: 0-40℃; submergence depth should be less than 5m.

Exploded View

burks BAP series micro stainless steel submersible pump exploded view

Parts List

No. Name
1 The fixed clip of Cable 电缆固定夹
2 Cable head 电缆封头
3 Cable clamp 电缆压紧垫圈
4 Cable 电缆
5 Press nut 压紧螺母
6 Float switch 浮球开关
7 The fixed clip of Cable 电缆固定夹
8 Cable head 电缆封头
9 O-ring O形圈
10 Cross recessed pan head screws 十字槽盘头螺钉
11 Handle 提手
12 Housing assembly 外筒组件
13 Hexagon socket head cap screw 内六角圆柱头螺钉
14 O-ring O形圈
15 Capacitor cover 电容罩
16 O-ring O形圈
17 Upper part of terminal box 接线盒上盒
18 Terminal 闭压端子
19 Cross recessed pan head screws 十字槽盘头螺钉
20 Spring washer 弹簧垫圈
21 Washer 平垫圈
22 Serrated lock washer external teeth 外锯齿锁紧垫圈
23 Capacitor 电容
24 Bottom part of terminal box 接线盒下盒
25 Cross recessed pan head screw and washer assemble 十字槽盘头螺钉和平垫圈组合
26 Cross recessed pan head screws 十字槽盘头螺钉
27 Back Cover 后端盖
28 The three wave 三波峰
29 Motor base 机座
30 Rotor assembling 定子总成
31 Bearing 轴承
32 Rotor assembling 转子总成
33 Bearing 轴承
34 Front Cover 前端盖
35 O-ring O形圈
36 Mechanical Seal 机械密封
37 Tension rod 拉杆
38 Pump Casing 泵盖
39 Cross recessed pan head screws 十字槽盘头螺钉
40 Protective cover 防护盖
41 Key 平键
42 Impeller 叶轮
43 Hexagon Nut 六角头螺母
44 Washer 垫圈
45 O-ring O形圈
46 Pump casing 泵壳
47 Hexagon Nut 六角头螺母
48 Base connection block 底座连接块
49 Base 底座
50 Cross recessed pan head screws 十字槽盘头螺钉
